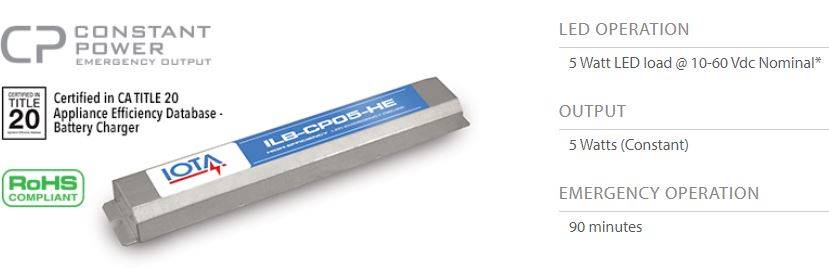

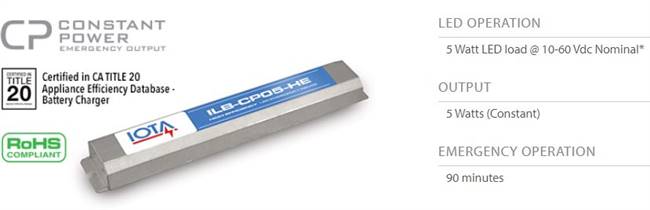

ILB CP05 HE A - High-Efficiency LED Emergency Driver
Description
Description
The IOTA ILB CP05 HE is a UL Listed LED emergency driver designed to provide reliable emergency lighting while allowing the same LED fixture to operate under normal conditions. In the event of a power outage, the ILB CP05 HE automatically switches to emergency mode, delivering 5 watts of constant power for up to 90 minutes. Its galvanized steel case and dual flex mounting configuration make it ideal for versatile installations, ensuring durability and dependable performance in commercial, institutional, and industrial lighting systems.
Engineered for energy efficiency and code-compliant operation, the ILB CP05 HE features a long-life, high-temperature Ni-Cad battery, surge protection that meets ANSI/IEEE C62.41.2-2002, and a high power factor of ≥0.95 at 120VAC. With universal input voltage (120–277VAC, 50/60Hz) and Class 2 compliant output, this driver ensures stable operation across a wide range of LED fixtures. Its robust construction and flexible mounting options provide easy integration and long-term reliability for emergency-ready lighting systems.
-
Constant Power Emergency Output: Provides 5W of constant power for up to 90 minutes during power failure.
-

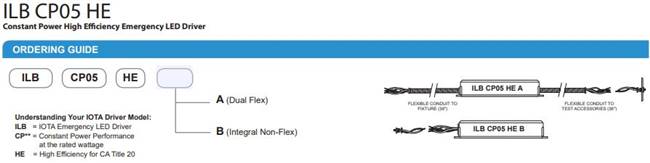

Dual Flex Mounting: Flexible mounting design allows easy installation in a variety of fixtures.
-
Universal Compatibility: Operates with LED fixtures at 120–277VAC, 50/60Hz for reliable emergency performance.
-
High-Efficiency & Durable: Galvanized steel case with long-life, high-temperature recyclable Ni-Cad battery.
-
Safety & Compliance: UL 924 Listed, UL 1310 Certified, Output Class 2 Compliant, and ANSI/IEEE surge-protected.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | ILB CP05 HE A |
| Mounting Configuration | Dual Flex |
| Input Voltage | (Universal) 120–277VAC, 50/60Hz |
| Input Rating | 2.3 Watts (max) |
| Output Voltage | 10–60VDC, Class 2 Compliant |
| Output Current | 0.5A (@10VDC) – 0.08A (@60VDC) |
| Output Power | 5 Watts (constant) |
| Max AC Driver Output Current | 3 Adc |
| Surge Protection | Meets ANSI/IEEE C62.41.2-2002 |
| Power Factor | ≥ 0.95 at 120VAC |
| Emergency Operation | 90 minutes |
| Operating Temperature | 0° to 55°C |
| Dimensions | Length: 14.95 in |
| Dimensions | Width: 2.2 in |
| Dimensions | Height: 1.375 in |
| Weight | 3 lbs |
| Certifications & Compliance | UL 924 Listed – Emergency Lighting and Power Equipment |
| Certifications & Compliance | UL Listed and Classified to FTBV |
| Certifications & Compliance | UL 1310 Certified – Output Class 2 Compliant |
