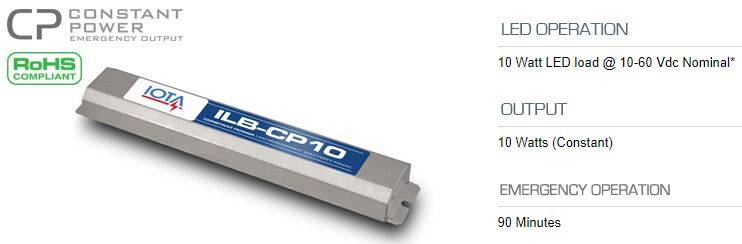

ILB CP10 B - LED Emergency Driver
Description
Description
The ILB CP10 from IOTA Engineering is a UL Listed and Classified LED emergency driver designed to provide reliable emergency illumination using an existing LED fixture. This constant power emergency driver allows a single luminaire to operate in both normal and emergency modes, simplifying lighting system design and eliminating the need for separate emergency fixtures. In the event of a power failure, the ILB CP10 automatically switches to emergency operation and powers the connected LED load for 90 minutes, ensuring code-compliant egress and life safety lighting.
Optimized for high-efficiency performance, the ILB CP10 meets California Title 20 efficiency requirements while delivering a consistent 10 watts of emergency output. Its integral (non-flex) mounting configuration provides a clean and compact installation solution, and the rugged galvanized steel housing combined with a long-life high-temperature Ni-Cad battery ensures durability and long-term reliability. This emergency driver is ideal for commercial and industrial environments such as offices, schools, healthcare facilities, and retail spaces.
-
High-Efficiency Emergency Output
Meets California Title 20 efficiency requirements while delivering a constant 10 watts of emergency power. -
Automatic Emergency Operation
Instantly switches to emergency mode during power loss and operates for 90 minutes. -
Integral Non-Flex Mounting
Provides a secure and streamlined installation option for compact fixtures. -
Code-Compliant Safety Performance
UL 924 Listed and UL Classified to FTBV for approved emergency lighting applications. -
Durable Long-Life Construction
Galvanized steel housing and high-temperature recyclable Ni-Cad battery ensure dependable operation.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Name | ILB CP10 LED Emergency Driver |
| Manufacturer | IOTA Engineering |
| Product Code | ILB CP10 B |

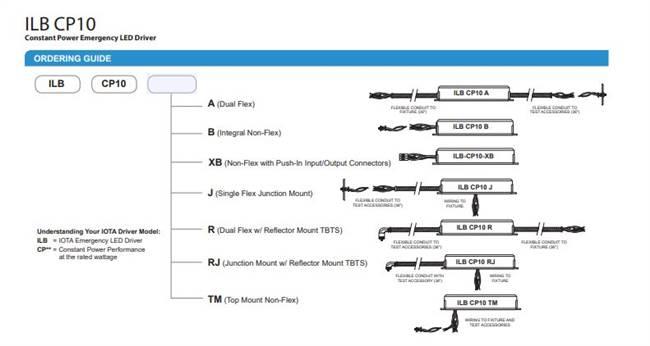

| Mounting Configuration | Integral (Non-Flex) |
| Input Voltage | 120–277 VAC, 50/60 Hz |
| Input Power | 3.7 Watts maximum |
| Output Voltage | 10–60 VDC, Class 2 compliant |
| Output Current | 1.0 A at 10 VDC to 0.16 A at 60 VDC |
| Output Power | 10 Watts constant |
| Maximum AC Driver Output Current | 3 A DC |
| Power Factor | ≥ 0.9 |
| Emergency Operation Time | 90 minutes |
| Battery Type | High-temperature recyclable Ni-Cad |
| Certifications | UL 924 Listed, UL Listed and Classified to FTBV, UL 1310 Certified |
| Operating Temperature | 0° to 55° C |
| Housing Material | Galvanized steel |
| Length | 13.0 inches |
| Width | 2.2 inches |
| Height | 1.25 inches |
| Weight | 3.5 lbs |
| Packaging | Master box quantity 20 |
