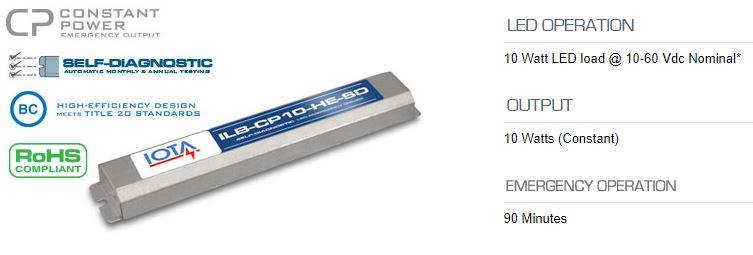

The ILB CP10 HE SD A from IOTA Engineering is a high-efficiency, UL Listed LED emergency driver designed to provide reliable illumination during power outages. This constant power driver allows the same LED fixture to operate in both normal and emergency modes, automatically switching to emergency operation for 90 minutes in the event of a power failure. Equipped with self-diagnostic functionality, the ILB CP10 HE SD continuously monitors its status to ensure proper operation and compliance with safety codes, making it ideal for commercial and industrial installations.
Engineered for demanding environments, the ILB CP10 HE SD A delivers a consistent 10-watt output across a wide voltage range (10–60 VDC) and supports dual flexible conduit mounting for versatile installation. Its rugged galvanized steel housing and long-life high-temperature Ni-Cad battery provide durability and dependable performance. This emergency driver is perfect for offices, schools, healthcare facilities, retail spaces, and industrial applications that require code-compliant, high-efficiency emergency lighting with minimal maintenance.
-
High-Efficiency Emergency Output
Delivers constant 10 watts of emergency power while meeting California Title 20 efficiency standards. -
Self-Diagnostic Functionality
Continuously monitors system status to ensure proper operation and compliance with emergency lighting codes. -
Reliable 90-Minute Illumination
Automatically switches to emergency mode during power loss and maintains consistent output for 90 minutes. -
Versatile Dual Flex Mounting
Supports flexible installation options across a range of fixture types and layouts. -
Durable Long-Life Construction
Galvanized steel enclosure and high-temperature recyclable Ni-Cad battery provide long-term reliability.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Name | ILB CP10 HE SD A Emergency LED Driver |
| Manufacturer | IOTA Engineering |
| Product Code | ILB CP10 HE SD A |

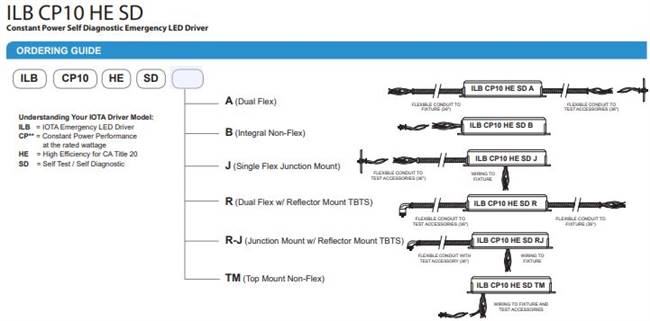

| Mounting Configuration | Dual Flex |
| Input Voltage | 120–277 VAC, 50/60 Hz |
| Input Power | 3.7 Watts maximum |
| Output Voltage | 10–60 VDC, Class 2 compliant |
| Output Current | 1.0 A at 10 VDC to 0.16 A at 60 VDC |
| Output Power | 10 Watts constant |
| Maximum AC Driver Output Current | 3 A DC |
| Power Factor | ≥ 0.9 |
| Emergency Operation Time | 90 minutes |
| Battery Type | High-temperature recyclable Ni-Cad |
| Certifications | UL 924 Listed, UL Listed and Classified to FTBV, UL 1310 Certified |
| Operating Temperature | 0° to 55° C |
| Housing Material | Galvanized steel |
| Length | 15.37 inches |
| Width | 2.24 inches |
| Height | 1.30 inches |
| Weight | 4.0 lbs |
| Packaging | Master box quantity 5 |
