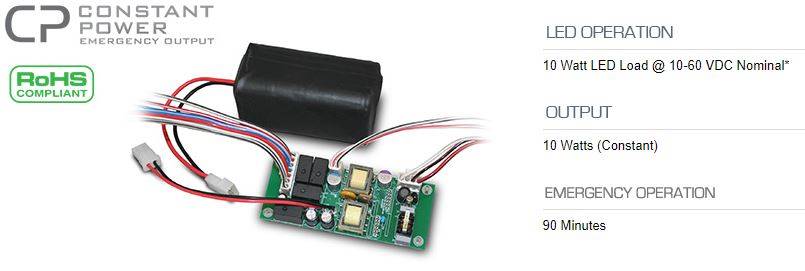

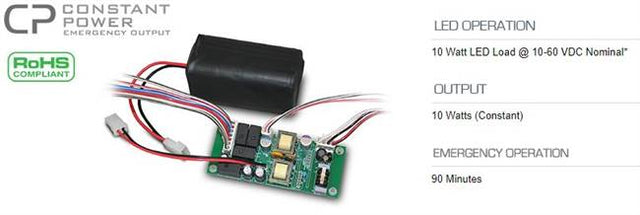

ILB CP10 L CUBE - LED Emergency Driver
Description
Description
The ILB CP10 L CUBE from IOTA is a UL Component Recognized LED emergency driver designed to provide reliable emergency illumination for LED fixtures. This constant power driver allows the same fixture to operate in both normal and emergency modes, automatically switching to emergency operation for 90 minutes during a power outage. Ideal for both switched and unswitched fixtures, the ILB CP10 L CUBE ensures dependable emergency lighting with minimal maintenance, making it suitable for commercial and industrial applications.
Featuring an open board design with cube battery configuration, this emergency driver combines high-efficiency performance with a long-life high-temperature Ni-Cad battery. Its galvanized steel enclosure provides durable protection for the integrated circuitry, while the included TBTS test switch and charge indicator accessory kit simplify installation and maintenance. With a constant 10-watt output across a 10–60 VDC range, the ILB CP10 L CUBE delivers reliable illumination for 90 minutes, ensuring compliance with emergency lighting requirements.
-
Constant 10-Watt Power Output
Maintains consistent illumination across 10–60 VDC even as system voltage varies. -
Open Board Cube Battery Design
Compact and efficient design allows for flexible installation in a variety of fixtures. -
Reliable 90-Minute Emergency Operation
Automatically powers LED fixtures during outages for code-compliant emergency lighting. -
Included Test Switch & Charge Indicator
Simplifies installation and maintenance with single-piece TBTS accessory kit. -
Durable Construction
Galvanized steel housing and long-life Ni-Cad battery ensure dependable performance.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Name | ILB CP10 L Cube Emergency LED Driver |
| Manufacturer | IOTA Engineering |
| Product Code | ILB CP10 L CUBE |
| Mounting Configuration | Open Board, Cube Battery |
| Input Voltage | 120–277 VAC, 50/60 Hz |
| Input Power | 3.7 Watts (max) |
| Output Voltage | 10–60 VDC, Class 2 compliant |
| Output Current | 1.0A @ 10VDC to 0.16A @ 60VDC |
| Output Power | 10 Watts constant |
| Max AC Driver Output Current | 3 A DC |
| Power Factor | ≥ 0.9 |
| Emergency Operation Time | 90 minutes |
| Operating Temperature | 0° to 55° C |
| Circuit Board Dimensions (L×W×H) | 4.625 × 1.875 × 1.25 in |
| Battery Dimensions (L×W×H) | 2.125 × 2.125 × 1.25 in |
| Weight | 3.5 lbs |
| Battery Type | High-temperature recyclable Ni-Cad |
| Certifications | UL 1310 Certified, Output Class 2 Compliant |
| Fixture Compatibility | Switched or unswitched LED fixtures |
| Housing Material | Galvanized steel |
| Accessories | TBTS test switch and charge indicator kit included |
| Packaging | Master box quantity 25 |
