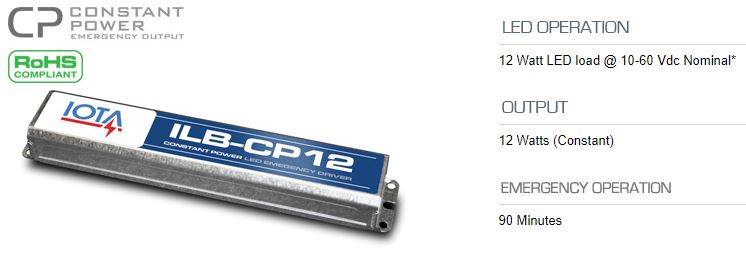

ILB CP12 B - LED Emergency Driver
Description
Description
The ILB CP12 B from IOTA Engineering is a UL Listed and Classified LED emergency driver engineered to deliver reliable emergency illumination for LED fixtures. This constant power driver allows the same fixture to operate in both normal and emergency modes. In the event of a power outage, the ILB CP12 B automatically switches to emergency operation, providing a consistent 12-watt output for 90 minutes. Its integral (no flex) mounting configuration makes it ideal for compact installations where a clean, streamlined setup is required in commercial and industrial spaces.
Built for long-term reliability, the ILB CP12 B features a high-temperature Ni-Cad battery and galvanized steel housing to protect the internal circuitry. Supporting six mounting configurations, this driver is UL 924 listed, UL 1310 certified, and Class 2 output compliant. Its wide 10–60 VDC range and 1.2A to 0.2A current output ensure consistent illumination, helping facilities meet Life Safety Code emergency lighting requirements.
-
Constant 12-Watt Power Output
Provides reliable illumination across a 10–60 VDC range for consistent emergency performance. -
Integral (No Flex) Mounting
Optimized for compact and streamlined installations. -
90-Minute Emergency Operation
Automatically powers LED fixtures during outages to meet code requirements. -
Durable Construction
Galvanized steel housing and long-life Ni-Cad battery ensure reliable, long-term performance. -

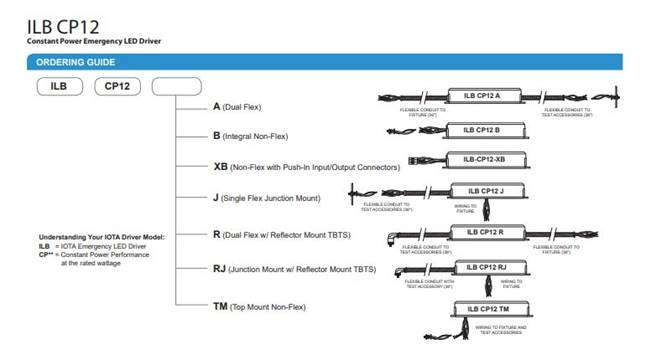

Multiple Mounting Configurations
Supports six mounting options for flexible installation in a variety of settings.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Name | ILB CP12 B Emergency LED Driver |
| Manufacturer | IOTA Engineering |
| Product Code | ILB CP12 B |
| Mounting Configuration | Integral (Non-Flex) |
| Input Voltage | 120–277 VAC, 50/60 Hz |
| Input Power | 3.7 Watts (max) |
| Output Voltage | 10–60 VDC, Class 2 Compliant |
| Output Current | 1.2A @10VDC to 0.2A @60VDC |
| Output Power | 12 Watts constant |
| Max AC Driver Output Current | 3 A DC |
| Power Factor | ≥ 0.9 |
| Emergency Operation Time | 90 minutes |
| Operating Temperature | 0° to 55° C |
| Dimensions (L×W×H) | 13.0 × 2.2 × 1.25 in |
| Weight | 3.5 lbs |
| Battery Type | High-temperature recyclable Ni-Cad |
| Certifications | UL 924 Listed, UL 1310 Certified, Output Class 2 Compliant |
| Housing Material | Galvanized steel |
| Fixture Compatibility | LED fixtures requiring integral/no flex mounting installation |
| Packaging | Master box quantity 20 |
