ILD 07 MVOLT LQD 10-55 TBTSPLENUMSS - LED Emergency Driver
Description
Description

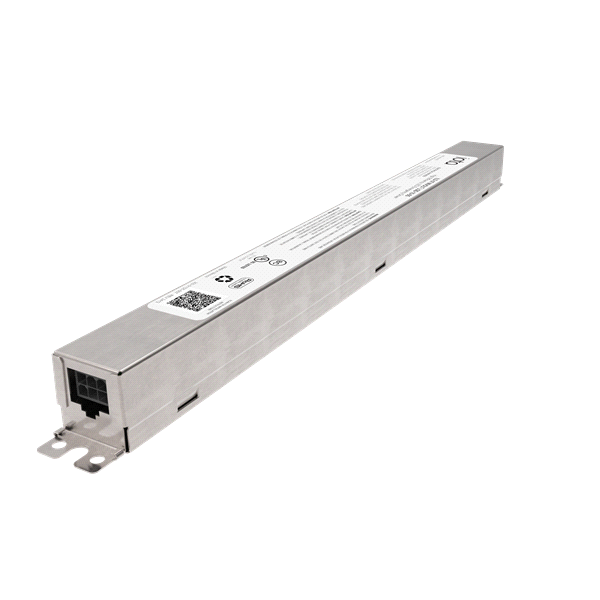

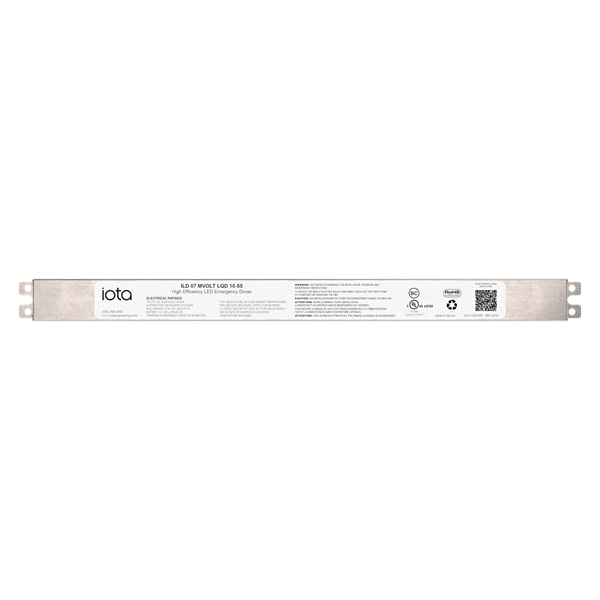

The IOTA ILD 07 MVOLT LQD 10-55 TBTSPLENUMSS is a constant power LED emergency driver engineered for compact, code-compliant emergency lighting applications in plenum-rated environments. Delivering a steady 7 watts of emergency output for a full 90 minutes, this driver operates across a wide 10–55VDC output range to support a variety of LED loads. Universal input voltage and high-efficiency performance make it ideal for commercial, institutional, and architectural lighting systems where reliability and compliance are critical.

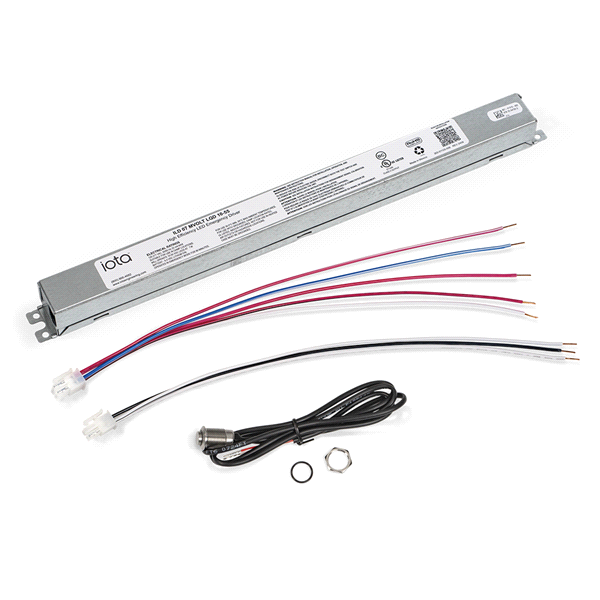

Designed with advanced lithium iron-phosphate battery technology, the ILD 07 MVOLT LQD provides long service life, fast recharge, and reduced maintenance. Integrated self-diagnostics with automatic monthly and annual testing simplify inspection and code compliance, while the Quick Disconnect harness allows fast installation and servicing. A stainless steel, IP67-rated plenum test switch ensures dependable operation in demanding plenum, damp location, and IC-rated luminaire applications.
Key Features and Benefits:
-
Constant Power Emergency Output: Supplies a stable 7 watts of illumination for 90 minutes during power loss.
-
Wide Output Voltage Range: Supports 10–55VDC Class 2 LED loads for broad fixture compatibility.
-
Lithium Iron-Phosphate Battery: Provides long life, fast 24-hour recharge, and improved thermal stability.
-
Integrated Self-Diagnostics: Automatic monthly and annual testing reduces maintenance and manual inspections.
-
Plenum-Rated Components: Stainless steel IP67 test switch and compliant construction for plenum installations.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | ILD 07 MVOLT LQD 10-55 TBTSPLENUMSS |
| Brand / Series | IOTA – ILD Series |
| Input Voltage / Frequency | 120–277 VAC, 50/60 Hz (Universal) |
| Input Current | 20 mA (max) |
| Emergency Output Power | 7 Watts (constant) |
| Output Voltage | 10–55 VDC, Class 2 Compliant |
| Output Current | 0.7 A @10VDC to 0.13 A @55VDC |
| Max Output Current | 1.4 A |
| Emergency Operation | 90 minutes |
| Battery Type | Lithium Iron-Phosphate, 24-hour recharge, 5–7 year life |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 15.5 in L x 1.14 in W x 1.16 in H (15 in mounting center) |
| Weight | 1.25 lbs |
| Accessories | Stainless steel IP67 plenum-rated test switch, Quick Disconnect harness |
| Certifications & Compliance | UL 924 Listed, UL Listed & Classified FTBR (US) / FTBR7 (Canada), UL 1310 Class 2, CSA C22.2 No. 141, FCC EMI Compliant, California Title 20, NEC / IBC / NFPA 101 Compliant, NEMA 410, RoHS Compliant, Suitable for Plenum, Damp Location, and IC-Rated Luminaires |
