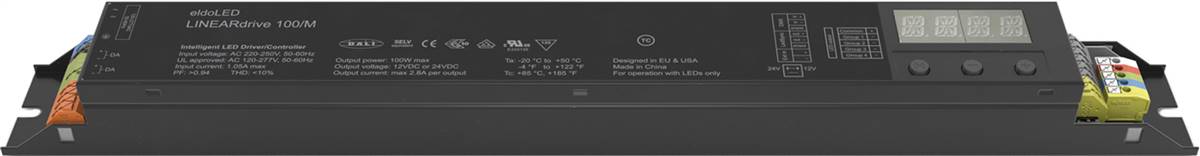

eldoled LINEARdrive 100/M Constant-Voltage DMX LED Driver
Description
Description
The eldoLED LINEARdrive 100M is a high-performance 100W LED driver designed for dynamic low-voltage lighting applications. With HydraDrive technology, it provides smooth, flicker-free dimming and precise color fades to dark, delivering superior visual performance for RGB, RGBW, and single-color LED fixtures. Its intuitive 3-button user interface with display allows easy configuration of DMX or DALI network settings, color, and dimming values, making it perfect for both standalone setups and networked installations.
Ideal for cove lighting, architectural highlights, and full-color dynamic lighting shows, the LINEARdrive 100M offers four independently controllable constant voltage outputs. It integrates seamlessly with LED modules, intelligent in-luminaire devices, and control systems, allowing designers to create complex lighting scenes without an external controller. The long metal form factor ensures durability and easy installation in a variety of environments.
-
Flicker-Free Dimming: HydraDrive technology delivers smooth dimming and precise color fades down to dark.
-
Multi-Channel Control: Four independent outputs support flexible RGB, RGBW, or single-color LED configurations.
-
Intuitive Configuration: 3-button interface with display simplifies DMX/DALI settings, color, and dimming adjustments.
-
Versatile Application: Perfect for cove lighting, architectural highlights, or dynamic full-color shows.
-
Durable Construction: Long metal enclosure ensures robust protection and straightforward installation.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver type | Constant voltage |
| Number of LED outputs | 4 (UL Class 2) |
| Maximum LED output power | 100W |
| LED output load | RGBW @ 12V: 2.08A |
| LED output load | RGB @ 12V: 2.76A |
| LED output load | RGBW @ 24V: 1A |
| LED output load | RGB @ 24V: 1.33A |
| LED output load | 5A maximum common anode |
| UL Class 2 output load | RGBW @ 12V: 1.25A per output |
| UL Class 2 output load | RGB @ 12V: 1.66A per output |
| UL Class 2 output load | RGBW @ 24V: 1A per output |
| UL Class 2 output load | RGB @ 24V: 1.33A per output |
| LED output voltage | 12 - 24V DC |
| LED output current | 2.8A absolute maximum per output |
| Nominal input voltage range AC | 120 - 250V (ENEC), 120 - 277V (UL) |
| Nominal input voltage range DC | 120 - 275V |
| Control protocol | DMX/DALI |
| Control channels | 4 |
| Dimensions LxWxH | 370 x 41 x 30 mm / 14.57 x 1.61 x 1.18 in |
| Weight | 880g |
