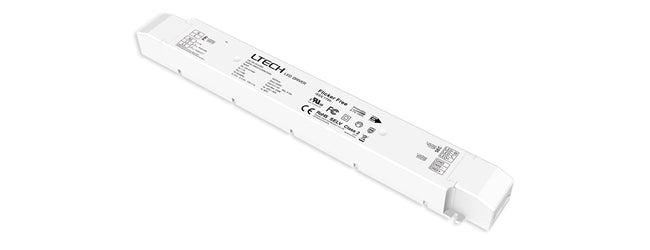

LM-100-24-U2M2 100W 24VDC CV DMX DIM&CT

The LM-100-24-U2M2 is a high-performance, 100W constant voltage tunable white LED driver designed for intelligent lighting applications. Delivering 24VDC output with ultra-smooth, flicker-free dimming from 0.1% to 100%, it supports both DMX/RDM and Push DIM/CCT control protocols. Ideal for commercial, architectural, and theatrical lighting installations, the LM-100-24-U2M2 enables precise color tuning from 2700K to 6500K while maintaining high efficiency and reliable operation in compact indoor environments.

Engineered with advanced thermal management and multiple protection features, this Class 2 driver ensures safe, long-lasting performance. Soft-on fade-in dimming with dim-to-off capability, dual-channel SELV output, and a compact housing with screwless strain relief simplify installation and maintenance. Backed by a 5-year warranty using high-quality Rubycon capacitors, the LM-100-24-U2M2 combines efficiency, precision, and reliability for professional-grade tunable white lighting systems.

Key Features and Benefits:

• High-Performance Output: 100W constant voltage with 24VDC output and max 4.17A.

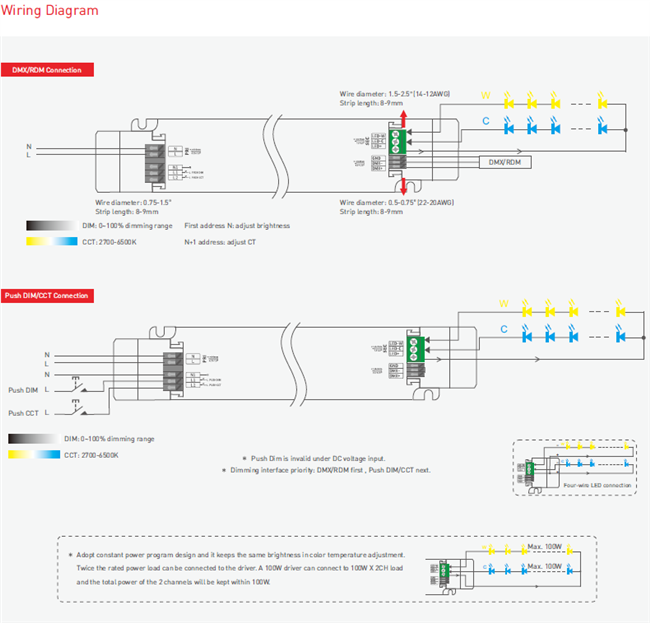

• Dual Dimming Control: Supports DMX/RDM and Push DIM/CCT protocols for flexible lighting control.

• Flicker-Free Dimming: Ultra-smooth dimming from 0.1%–100% compliant with IEEE 1789.

• Color Temperature Tuning: Adjustable 2700K–6500K for tunable white applications.

• Advanced Protection and Reliability: Overload, overvoltage, overheat, and short-circuit protection with thermal management; 5-year warranty using Rubycon capacitors.
