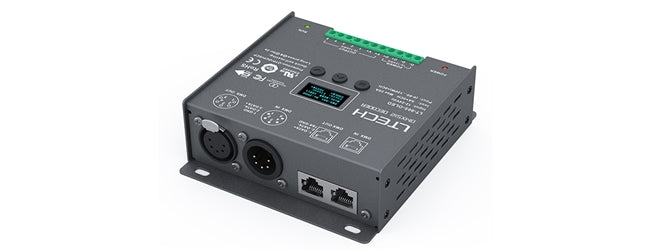

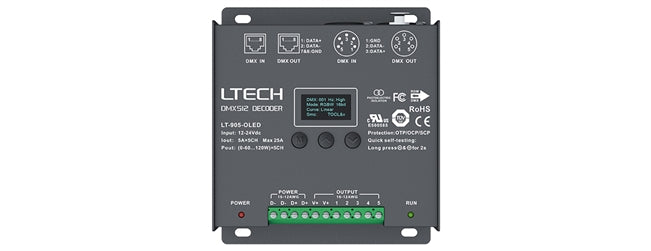

LT-905-OLED 5CH CV DMX/RDM Decoder

The LT-905-OLED is a 5-channel DMX/RDM constant voltage decoder designed for professional lighting control applications, offering up to 5A per channel and a maximum output of 600W. With an intuitive OLED display and touch buttons, it allows for easy operation, real-time monitoring, and precise control over a wide range of lighting effects. The decoder supports multiple control modes—including DIM, CT, RGB, RGBW, and RGBWY—making it ideal for architectural, stage, and entertainment lighting setups. Its RDM compatibility enables remote management of DMX addresses, parameter settings, and device recognition, streamlining setup and maintenance in complex installations.

Equipped with 16-bit (65536 levels) and 8-bit (256 levels) dimming capability, the LT-905-OLED offers ultra-smooth lighting control with customizable dimming curves, including standard, linear, LOG, and user-defined options. The decoder features 5-pin XLR and RJ45 DMX interfaces with photoelectric isolation for enhanced signal stability and anti-interference performance. Built-in safety measures protect against short circuits, over-current, and overheat conditions, and include warning notifications when faults occur. Additional features such as power-on state management, fast self-testing, and firmware upgradeability make it a highly reliable solution for intelligent lighting control.

Key Features and Benefits:

• 5 Channels Output: Each channel supports up to 5A, maximum total output 600W for versatile LED control.

• Multiple Control Modes: Supports DIM, CT, RGB, RGBW, and RGBWY for dynamic lighting applications.

• OLED Display & Touch Buttons: Real-time monitoring, easy operation, and status feedback.

• Advanced Dimming: 8-bit/16-bit grey levels with standard, linear, LOG, or custom 0.1–9.9 dimming curves.

• Comprehensive Protection: Automatic recovery from short circuit, over-current, and overheat conditions.
