OTi75W/120-277/2A0/DIM-1

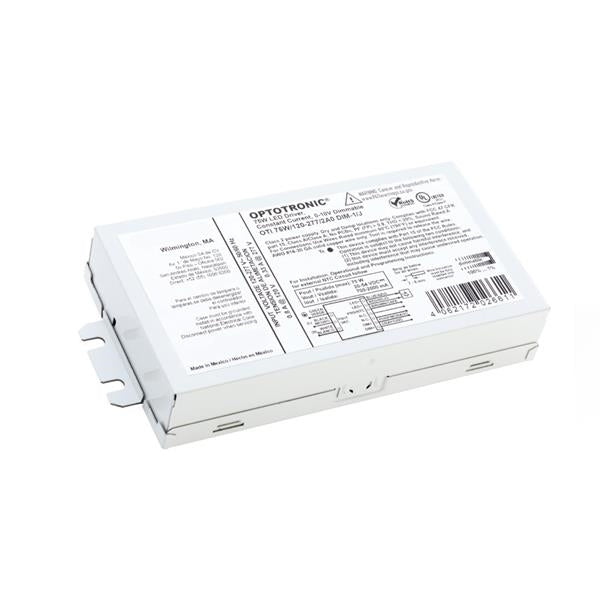

The eldoLED OPTOTRONIC OTi75W/120-277/2A0/DIM-1 is a high-performance, compact programmable constant current LED driver designed for commercial and architectural lighting applications. Delivering up to 75W of power with a programmable output current range of 700–2000mA (factory default 2000mA), it provides precise, flicker-free illumination for LED downlights, troffers, and wall wash fixtures. Featuring isolated 0–10V dimming down to 1% with optional dim-to-off, this driver allows smooth, energy-efficient control, while constant lumen maintenance ensures consistent light output throughout the lifetime of the LED fixture.

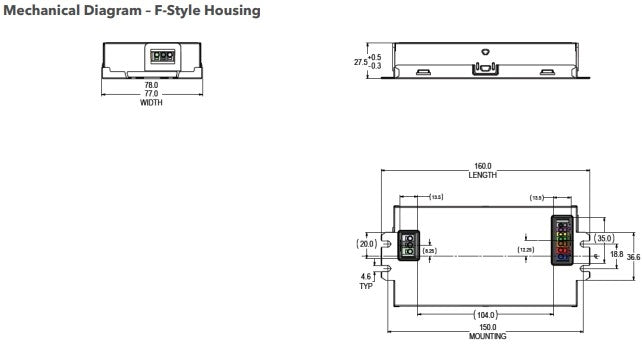

Built for versatility and durability, the OTi75W driver supports a universal input voltage range of 120–277V AC and is available in F-Style or J-Style housings for easy installation in standard fixtures. Advanced protections including LED thermal foldback, over-voltage, overload, short-circuit, and over-temperature safeguards provide reliable operation in both dry and damp locations. With high efficiency up to 91%, a power factor greater than 0.9, and compliance with UL, FCC, NEMA 410, and California Title 24 standards, this driver delivers dependable performance backed by a 5-year limited warranty.

Key Features

• High-Power Performance: Compact constant current LED driver delivering up to 75W output power.

• Programmable Output Current: Adjustable 700–2000mA in 1mA steps for precise LED control.

• 0–10V Dimming & Dim-to-Off: Smooth, flicker-free dimming down to 1% for professional lighting designs.

• Constant Lumen Maintenance: Maintains consistent light output over the lifetime of the LED fixture.

• Advanced Protections & Compliance: Over-voltage, overload, short-circuit, over-temperature protection; UL, FCC Class A, NEMA 410, and CA Title 24 compliant.
