VSS020W-24 Constant Voltage LED Driver
Regular price
$48.00
Unit price
Unavailable
Description
Description

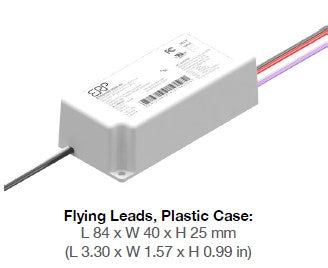

The ERP Power VSS020W-24 is a compact 20W constant voltage LED driver delivering 24V output for low-power LED strip and accent lighting applications.
-
Key Features
- 20W constant voltage driver
- 24V DC output
- Compact design
- Ideal for accent lighting
Specifications
Specifications

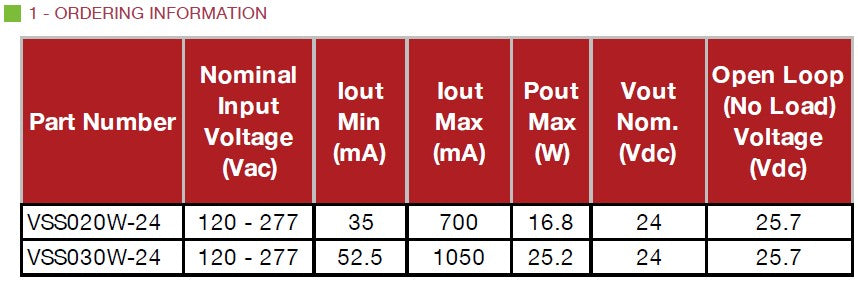

| Attribute | Specification |
|---|---|
| Brand | ERP Power |
| Product Code | VSS020W-24 |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 20W |
| Output Current Range | 0.83A |
| Output Voltage Range | 24VDC |
| Efficiency | Up to 85% |
| Power Factor | ≥0.90 |
| THD | <20% |
| Inrush Current | <15A |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 75°C max |
| Output Protection | Short circuit, overload, thermal |

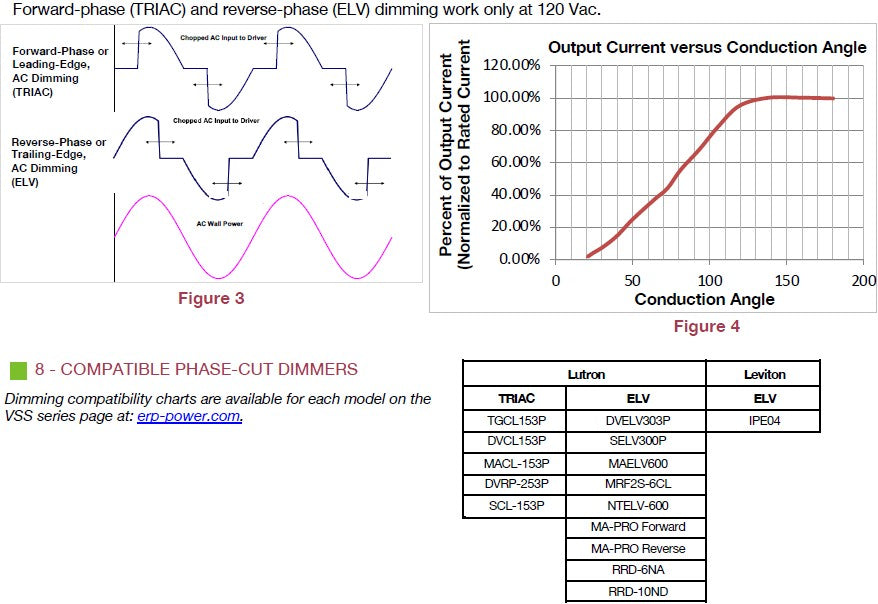

| Dimming Control | 0-10V / PWM |
| Dimming Range | 1% – 100% |
| Advanced Features | Compact low-power driver |
| Enclosure Rating | IP20 |

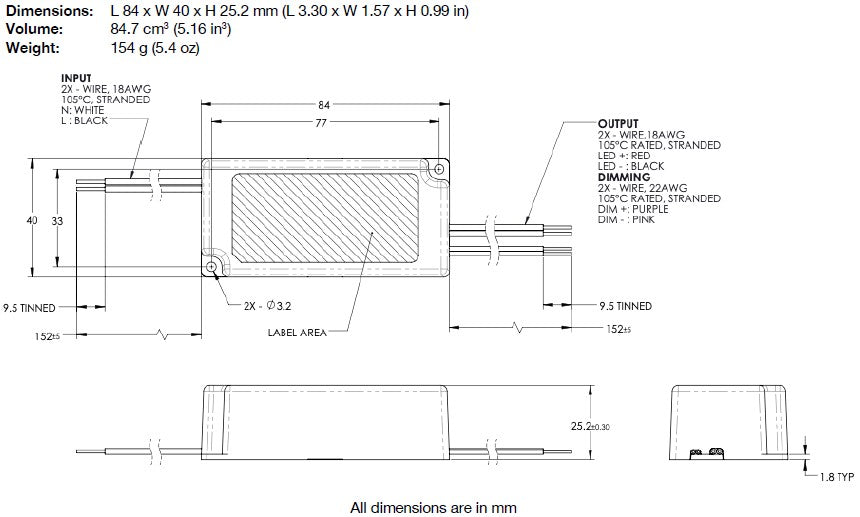

| Dimensions | ~4.5" x 1.4" x 0.9" |
| Mounting Length | ~4.1" |
| Certifications & Compliance | UL, FCC, RoHS |
| Sound Rating | Class A |
| Warranty | 5 Years |
